EXTENSION LINE/PRESSURE MONITORING LINE

Extension Line/Tube is a device to be incorporated between infusion line and the indwelling Venipuncture device to minimize disturbance at cannulation/insertion sites by taking the movement of away from cancellation/insertion site.

LOW PRESSURE EXTENSION LINE

LOW PRESSURE EXTENSION LINE (MAIS EX LINE)

Low pressure extension line provides an extension to the IV fluid pathway for blood, medication or transfusion etc. at flow rate of 200ml/min.

Technical Features:
Transparent(with color coded sticker).
6% taper male & female Luer locks.
Kink resistant PVC tubing.
Low Pressure tube dia. Int. (3.0mm) Ext. (4.1mm) & pressure handling capacity: 60 psi.
High Pressure Extension Line

HIGH PRESSURE EXTENSION LINE (MAIS EX LINE)​

High pressure extension line provides an extension to the IV fluid pathway for blood, medication or transfusion etc. to withstand with high pressure.

Technical Features:
Transparent Pressure Monitoring Line (with color coded sticker).
6% taper male & female Luer locks.
Kink resistant PVC tubing.
High Pressure tube dia. Int. (1.0mm) Ext. (3.1mm) & pressure handling capacity: 800 psi.

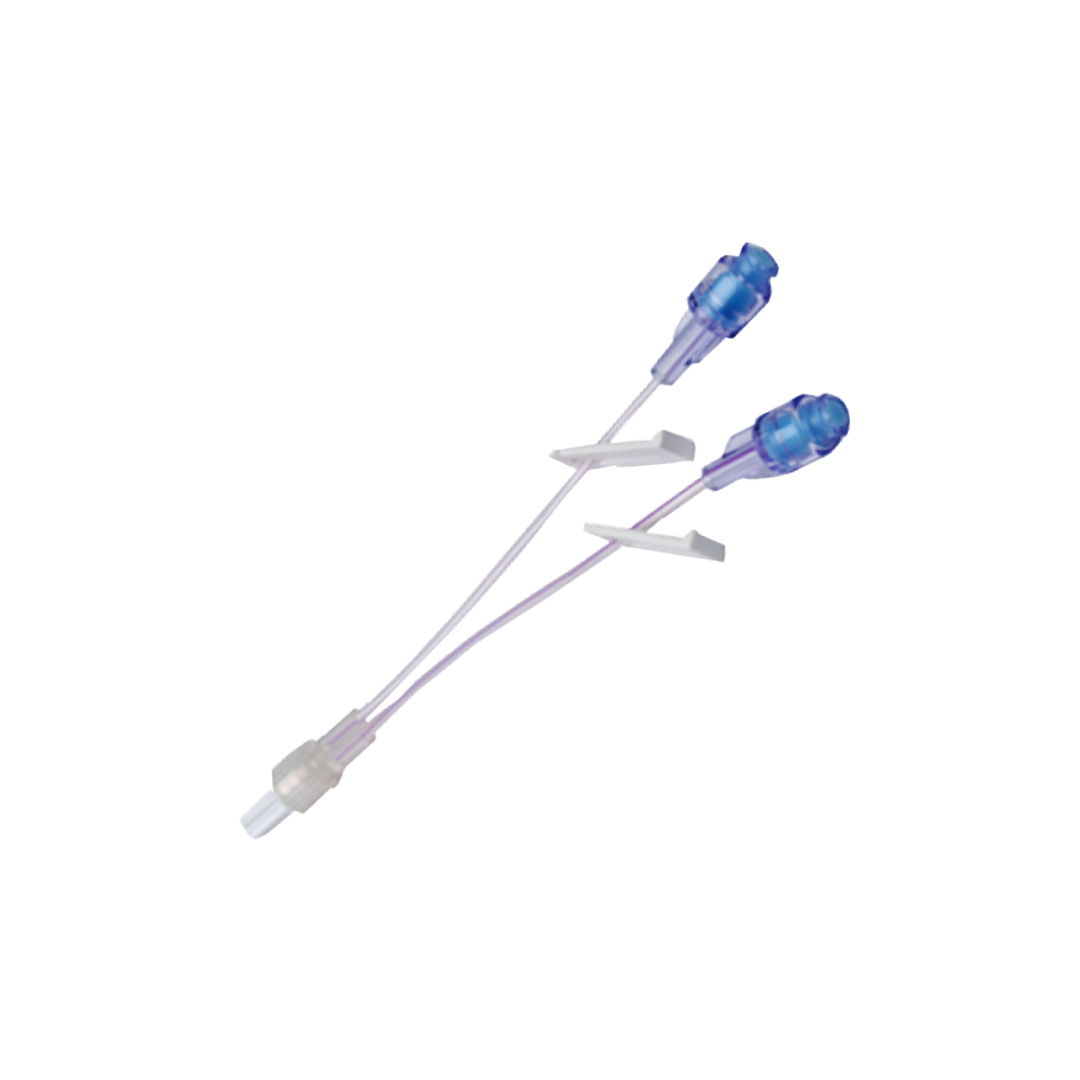

Multi Lumen Extension Line with Needle Free Injection Stopper

Multi Lumen Extension Line with Needle Free Injection Stopper

It is a multi-purpose, closed and needle free connection device which seals the I.V. pathway and used for infusion, medication etc. without changing the I.V. circuit.

Technical Features:
Smooth top can be effectively swabbed with standard acceptable disinfection practice.
Male luer connector at one end and female needle free connector other end.
Kink resistant PVC tubing.
Split septum valve technology.
Slide clamp for immediately stop the flow.
Available : Single lumen, Double lumen, Three lumen.
Length of tubes : 10-30cm.
Also Variants Available In (both low & high pressure extension line):
Rotating Luer Lock.
Y-Injection site.
DEHP free product.

Frequently Asked Questions

Pressure monitoring line is used for observing the pressure through extended medical soft, kink resistant PVC tubing which ensures smooth fluid movement.

It is available in different sizes (cm): 25, 50, 100, 150 & 200.

It should be 6% taper so it can be connected with all standard medical devices.

Pressure monitoring lines are available with different color coded stickers.
